Earthquake Triangulation

Novice

Use 3 seismic stations to locate earthquake epicenter

The Earthquake Triangulation app provides a simple interactive map where users can estimate the location of an earthquake using the distances between the earthquake and 3 or more seismic stations.

As an activity to locate an earthquake, students or instructors can estimate the location of an earthquake using seismograms from at least 3 different seismic stations. Earthquake-station distances need to be calculated separately by first picking P and S arrival times on seismograms, measuring the time difference between the P and S waves, and then using a P and S wave travel time graph to determine the distance. For example, see the activity "Locating an Earthquake with Seismic Data" in the "Lessons" tab above which includes 3 seismograms from the 2019 Ridgecrest earthquake. [Note: seismic stations and seismograms can also be found using the IRIS Station Monitor, see link in tab above.  In the Station Monitor app, the P and S arrival times have already been marked, so your students will only need to determine the distance using a travel time curve.]

IF YOU HAVE SEISMOGRAMS AND WANT TO DETERMINE THE EARTHQUAKE EPICENTER:

Once you have the seismograms and have calculated the distance to the unknown earthquake, the application allows users to place their choice of seismic stations on the maps using the following steps:

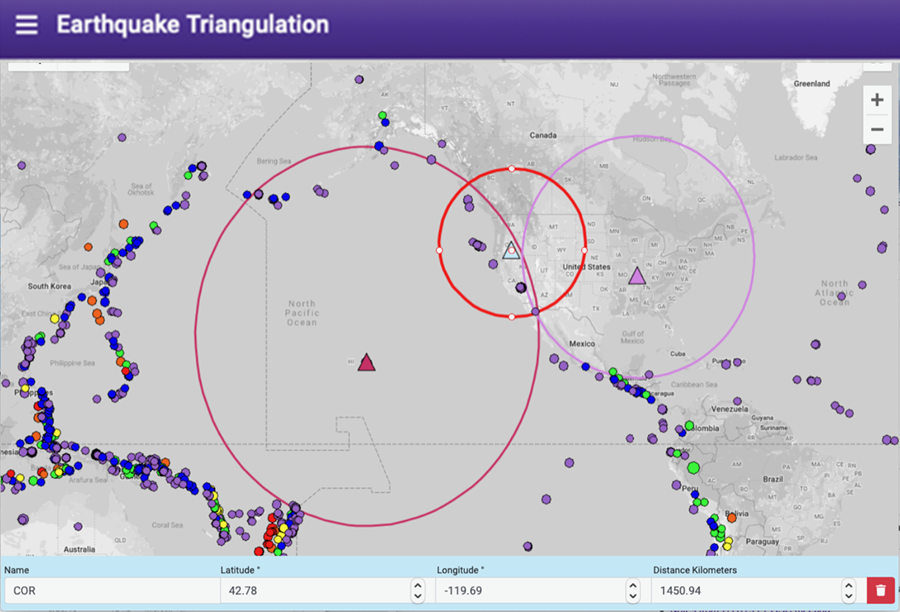

1. Select: “+ Station
2. A station will appear on the map and will be listed at the bottom of the window.  You can either type in the correct Latitude and Longitude of your station or you can adjust the station location on the map.
3. Then type in the distance from your station to the earthquake as calculated using P and S arrival times on your seismogram, which will adjust the circle on the map to have a diameter equal to the distance to the earthquake.  The circle size can also be changed on the map by clicking on the circle and moving it.
4. Select: “+ Station” to add the next station
5. Do this for at least 3 seismic stations.
6. Click on “List” to see all your stations
7. The three distance circles should nearly overlap at one location.
8. Once you see that the circles are close to intersecting at a single intersection point, click on the left-hand menu option, then click on User Event and Show Marker.  You can then move the marker to the intersection point, which will give you the Latitude and Longitude of the earthquake.

Description

Keypoints:

• Easily plot stations and distance circles on an interactive world map to demonstrate how earthquakes can be located using the time difference in the arrivals of P and S waves at a set of seismic stations.
• Compare estimated locations to plate boundaries and recent seismicity
