## Earthquake Machine 3—Investigating earthquake prediction: ADI-style activity

4h Novice

• Student Handout
• Instructor Guide
Optional Files 1

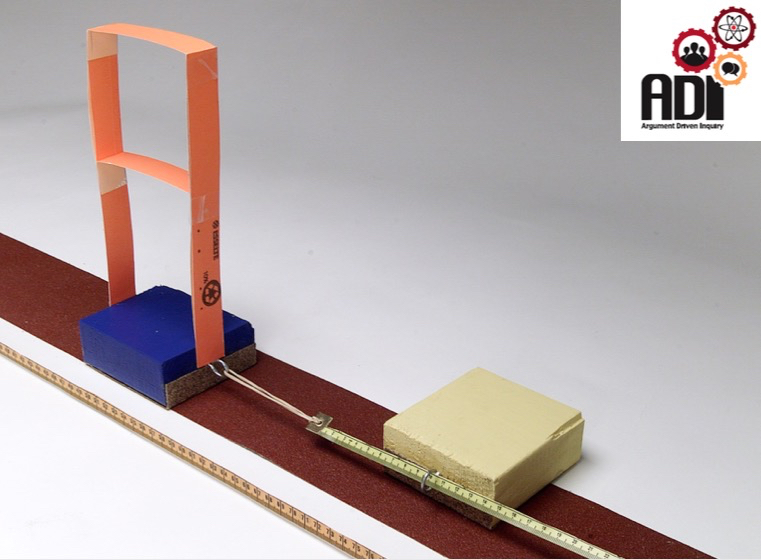

Students work in small groups to use a physical model, the earthquake machine, to examine the occurrence of earthquakes and the inputs and outputs of fault systems. Their task is to design and carry out an investigation(s) to explore the three elements of earthquake prediction (When?, Where?, How Big?) and the challenges to making such predictions.  Following a Argument-Driven Inquiry (ADI) instructional approach students analyze data collected through their investigation and collectively develop a tentative argument to address the guiding questions. Their claim, evidence and justification are sketched out on whiteboards for a class “poster session”. Following this, a teacher led discussion of their investigations and resulting data helps students to connect their investigations to broader Earth science concepts and ensures core content is addressed. The instruction is wrapped up through an individual writing assignment and double-blind peer review process.

#### Objectives:

Students will be able to:

• Analyze and interpret data on seismic hazards to forecast future catastrophic events and inform the development of technologies to mitigate their effects.

This video shows how to build the "Earthquake Machine", a physical model that represents the “earthquake cycle”, the slow accumulation of elastic energy in rocks on or adjacent to a fault followed by rapid release of elastic energy during an earthquake.
Video Novice

## Related Animations

Animation shows the buildup of stress along the margin of two stuck plates that are trying to slide past one another. Stress and strain increase along the contact until the friction is overcome and rock breaks.

Animation Novice

Graphing time vs. distance using the classic block-and-sandpaper "earthquake machine"

Animation Novice

Graphing time vs. strain using the classic block-and-sandpaper "earthquake machine"

Animation Novice

Animation of the single-block "Earthquake Machine", a mechanical model of the earthquake process using a wood block, sandpaper, and rubber bands. This model shows how "Forces, Faults, and Friction" interact as elastic energy is slowly stored when the rubber back stretches and then is rapidly released as the block jerks during an "earthquake".

Animation Novice

Oblique view of a highly generalized animation of a subduction zone where an oceanic plate is subducting beneath a continental plate. (See sketch below for parts.) This scenario can happen repeatedly on a 100-500 year cycle. The process which produces a mega-thrust earthquake would generate a tsunami, not depicted here.

Animation Novice

## Related Videos

This demonstration shows that rocks are elastic by squeezing a slit core of rock.

Video Novice

Video lecture about elastic rebound and brittle material in the crust using a yardstick as a mechanical analog. This demonstrates elasticity, brittle fracture, and why it is difficult to predict earthquakes.

Video Novice

This demonstration shows that rocks are elastic by squeezing a slit core of rock.

Video Novice

THE two-block "Earthquake Machine" uses two blocks with different grit sandpaper to model interactions between adjacent patches along a fault.

Video Intermediate

## Related Lessons

Through a demonstration lead by the teacher, the discrepant concept of rocks exhibiting elastic behavior is physically illustrated with an easily obtained, inexpensive model.

Lesson Novice

Using a block-and-sandpaper model, students collaborate in small groups to investigate how energy is stored elastically in rocks and released suddenly as an earthquake (the earthquake cycle). This activity emphasizes the role of mechanical models in understanding and testing ideas in science.

Lesson Novice

In this activity students use a mechanical fault model to collect empirical data, develop logical arguments about earthquake re-occurrence, and skeptically review other groups arguments.

Lesson Novice

Using Silly Putty™ as an analogy, this activity extends student understanding of the deformation a rock undergoes as a result of stress, plus several factors that contribute to the behavior.

Lesson Novice

We encourage the reuse and dissemination of the material on this site as long as attribution is retained. To this end the material on this site, unless otherwise noted, is offered under Creative Commons Attribution (CC BY 4.0) license
