USArray Station: How it Works

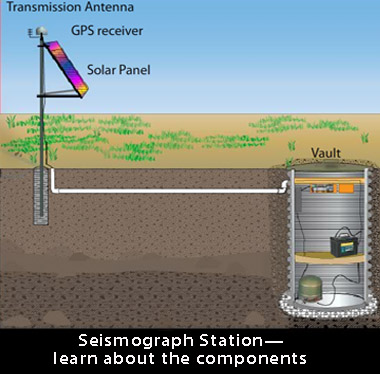

This rollover shows all the parts to a typical under-ground USArray seismic station, and how it works. Push the "Watch an Earthquake" button to see how the energy goes from the ground through the station to a distant computer.

VIEW the interactive in a separate tab, by clicking on "Open Resource". (Note some browsers lack the plugins for rollovers.)

OR click Download All.  AFTER downloading, you can Open either:

  •  by using Flash player, or
  •  by clicking File > Open from within your browser, find the file on your computer, and it should open as an interactive file.


Keypoints:

In addition to watching an earthquake arrive at this seismic station, you can roll over the gray buttons reveals animated information about:

  • Vault
  • Solar Panel
  • Radio Antenna
  • GPS
  • Seismometer
  • Data Logger
