Pacific Northwest vs. Sumatra: Flash rollover

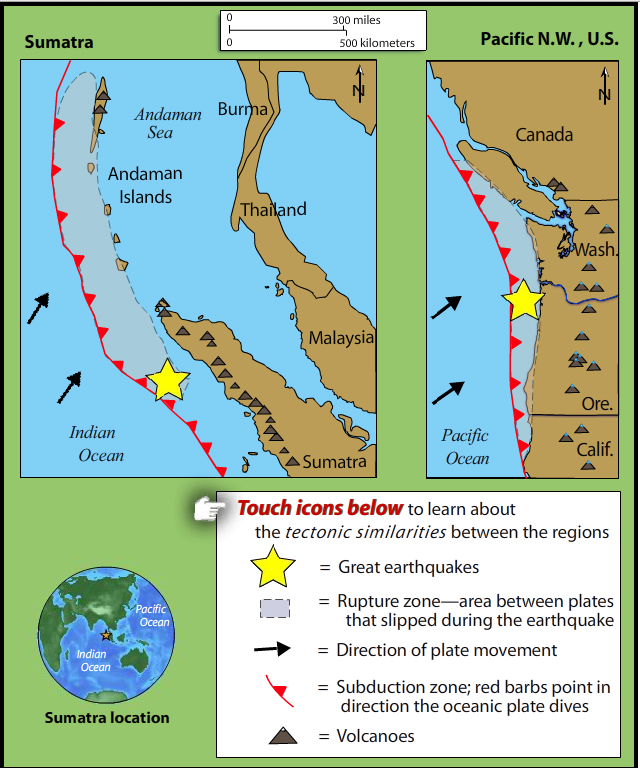

This rollover compares the an earthquake of 1700 in the Pacific Northwest with the 2004 Sumatra earthquake and tsunami. The tectonic settings are similar.



VIEW the interactive in a separate tab, by clicking on "Open Resource". (Note some browsers lack the plugins for rollovers.)

OR click Download All.  AFTER downloading, you can Open either:

  •  by using Flash player, or
  •  by clicking File > Open from within your browser, find the file on your computer, and it should open as an interactive file.


Keypoints:

What do these subduction zones have in common?

  • Both have volcanoes lined up parallel to the plate boundary
  • Both have had Great earthquakes
  • Both have faster moving oceanic plate diving beneath a slower plate
  • Both have generated tsunamis that traveled across the Pacific Ocean


Level: Novice
